Copper/Nickel Hybrid Strip – Battery Pack Construction
Copper/Nickel Hybrid Strip is ideal for battery pack construction where improved current handling is required. Combining the conductivity benefits of copper with the weldability of nickel, it is suitable for high-performance spot-welded battery assemblies.
Key Features
- Copper/nickel hybrid construction – improved conductivity compared with standard nickel strip
- Nickel surface layer – easier to spot weld than bare copper
- Low resistance – suitable for higher current battery pack builds
- Corrosion resistant outer layer – durable and reliable over time
- Available in various sizes – suitable for different pack designs and current requirements
Usage
- Suitable for series and parallel cell connections
- Can be cut to required lengths for custom battery pack layouts
- Compatible with standard battery spot welders
- Sold as a continous 800mm length.
Applications
Suitable for:
- DIY battery pack building
- E-bike and EV battery assemblies
- Power tools and high-drain battery packs
- Energy storage systems
- High-current lithium-ion battery packs
- General electronics and prototyping projects
Available Options
| Listing Variant | Length | Overall Width / Height | Cell Pitch | Slot / Hole Pitch | Cell Diameter Reference |
|---|---|---|---|---|---|
| 1P-18650 – No Spacer | 800mm | 15.1mm | 18.4mm | 8.2mm | Ø18.4mm |

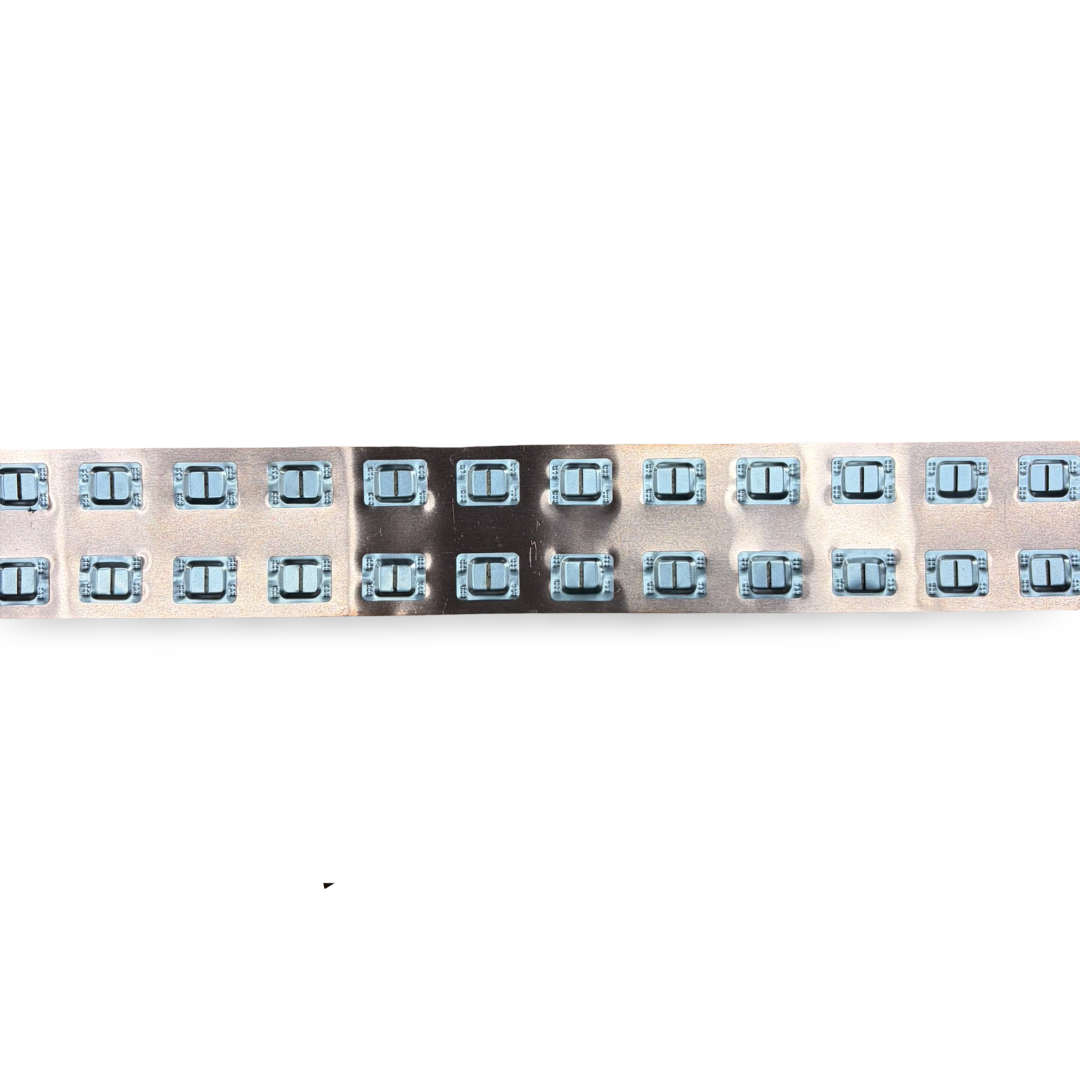

| 2P-18650 – Square No Spacer | 800mm | 33.5mm | 18.4mm | 8.2mm | Ø18.4mm |

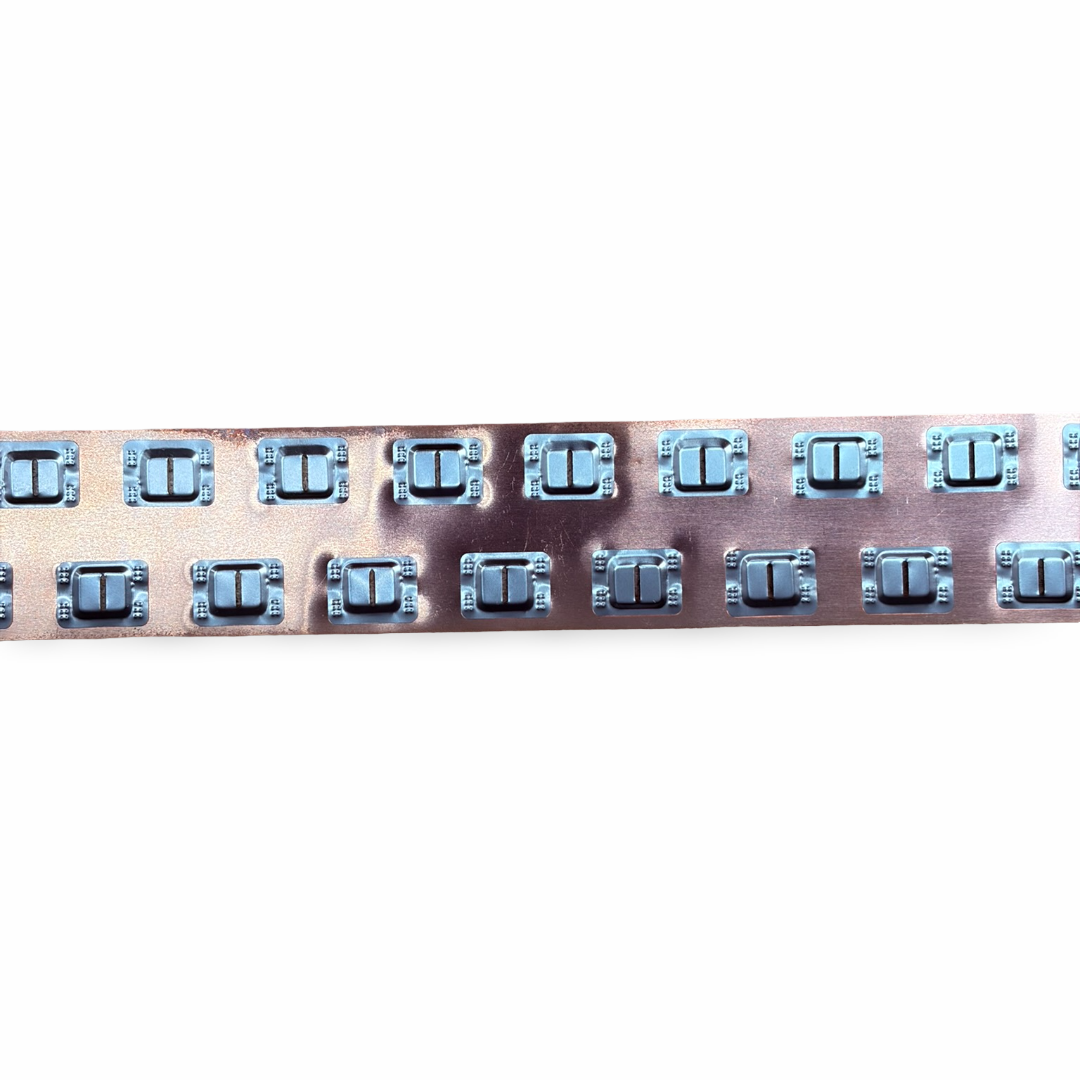

| 2P-18650 – Staggered No Spacer | 800mm | 29.03mm | 18.4mm | 8.2mm | Ø18.4mm |

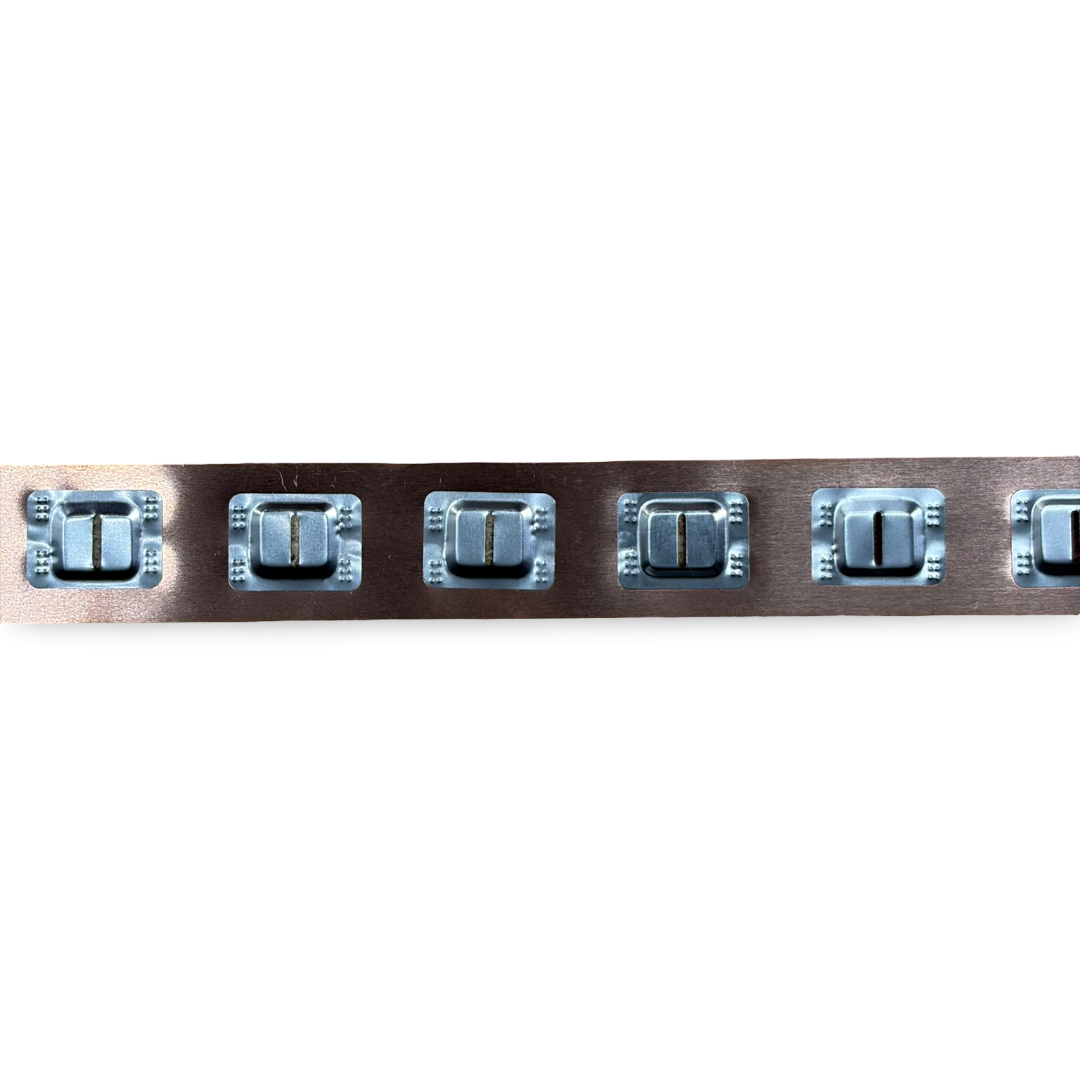

| 1P-21700 – Square No Spacer | 800mm | 14.1mm | 21.4mm | 8.2mm | Ø21.4mm |

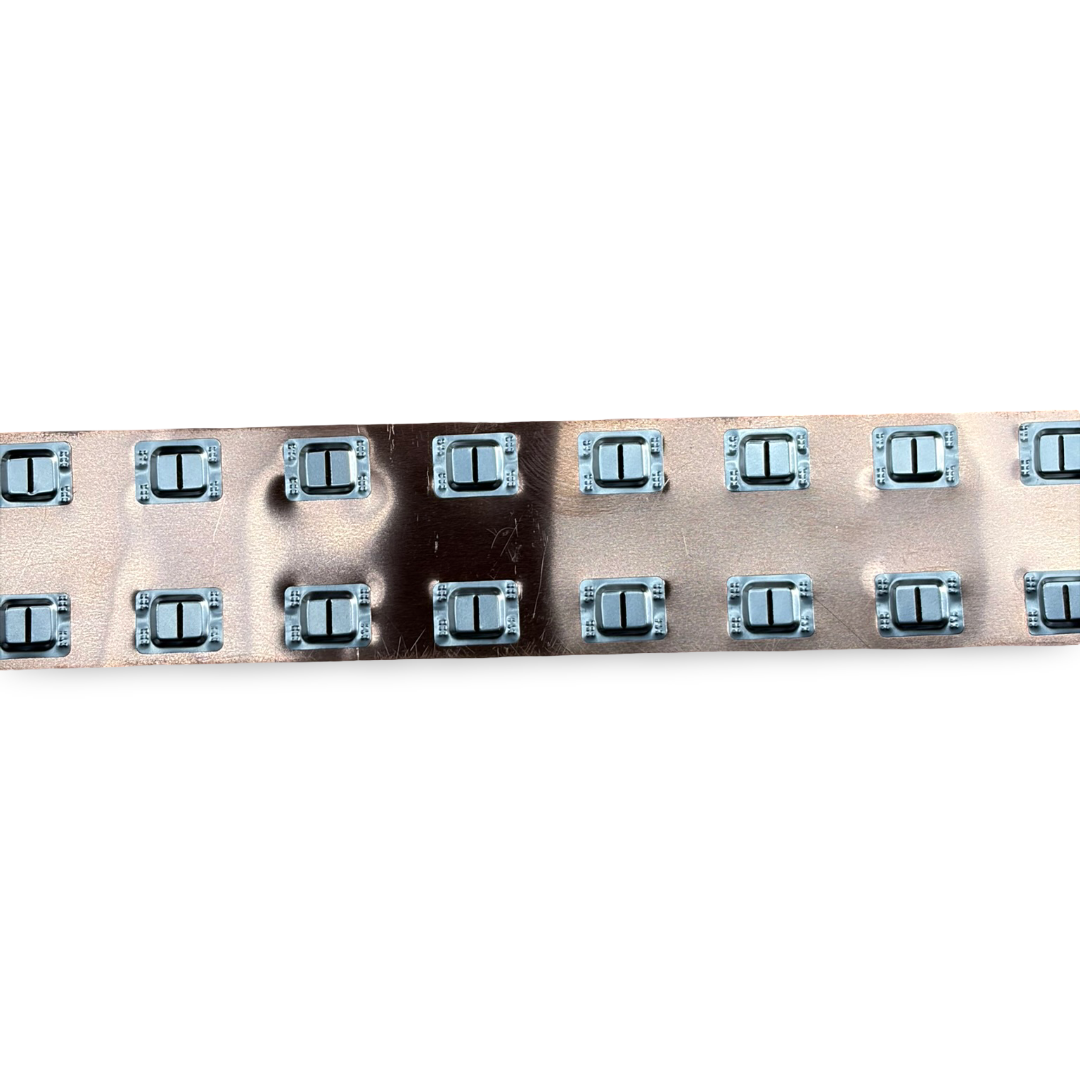

| 2P-21700 – Square No Spacer | 800mm | 34.5mm | 21.4mm | 8.2mm | Ø21.4mm |

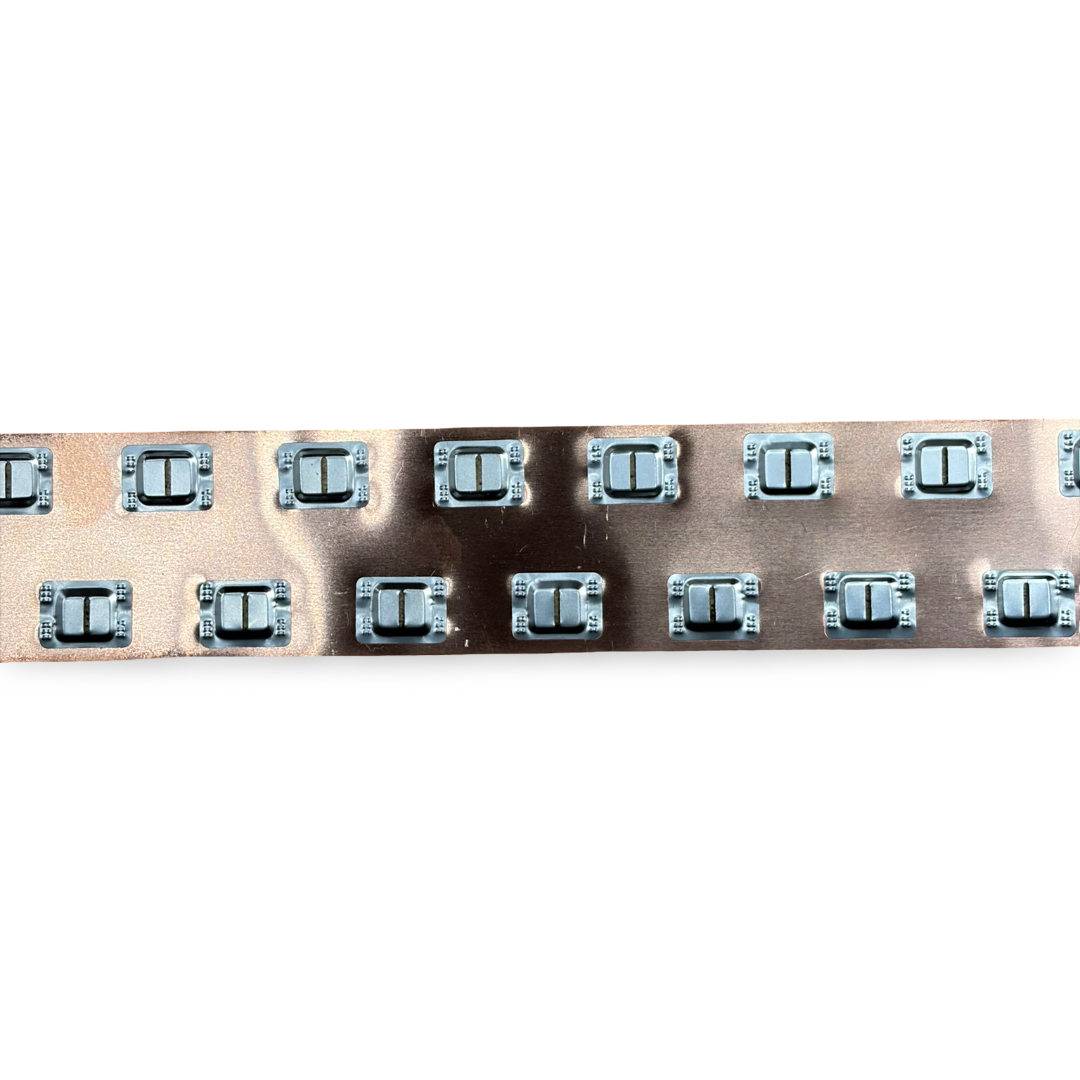

| 2P-21700 – Staggered No Spacer | 800mm | 31.63mm | 21.4mm | 8.2mm | Ø21.4mm |
Please select the required specification from the dropdown menu.
£0.00
£6.95
